How to Select a Feed Pump for a Filter Press?
Selecting the right feed pump for a filter press is a complex undertaking that requires comprehensive consideration of process parameters, material characteristics, and equipment compatibility. We will begin by explaining several key factors.
Define Process Requirements
Before selecting a pump, the following basic parameters must be clarified:
- Flow rate: The hourly feed rate of the filter press (m³/h). The pressure must be determined based on the filter press specifications.
- Feed pressure: Must meet the working pressure of the filter press and must be greater than or equal to the equipment’s working pressure.
- Solids content: The mass fraction of solid particles in the slurry.
- Particle size: The maximum particle size of solid particles, affecting pump type selection. Pumps containing hard particles (such as mineral slurries) require wear-resistant pumps (ceramic plunger pumps).
- Temperature: Slurry temperature, affecting material selection.
- Corrosivity: Acidity, alkalinity, chloride ion content, etc. Acidic and alkaline slurries require pump bodies made of corrosion-resistant materials such as stainless steel or fluoroplastics.
Matching Pump Type to Material Characteristics

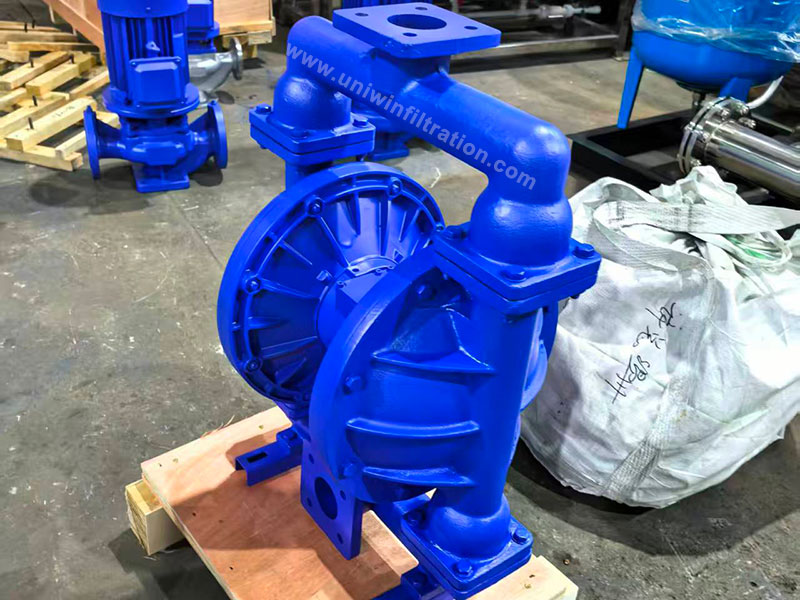

Diaphragm pump
Suitable scenarios: slurries with high solids content, coarse particles, and strong corrosiveness
Advantages: good self-priming ability, wear and corrosion resistance, capable of conveying slurries containing large particles, adjustable flow rate
Typical types: pneumatic diaphragm pumps, electric diaphragm pumps, hydraulic diaphragm pumps
Recommended operating conditions: mine tailings, sludge dewatering, chemical slurries

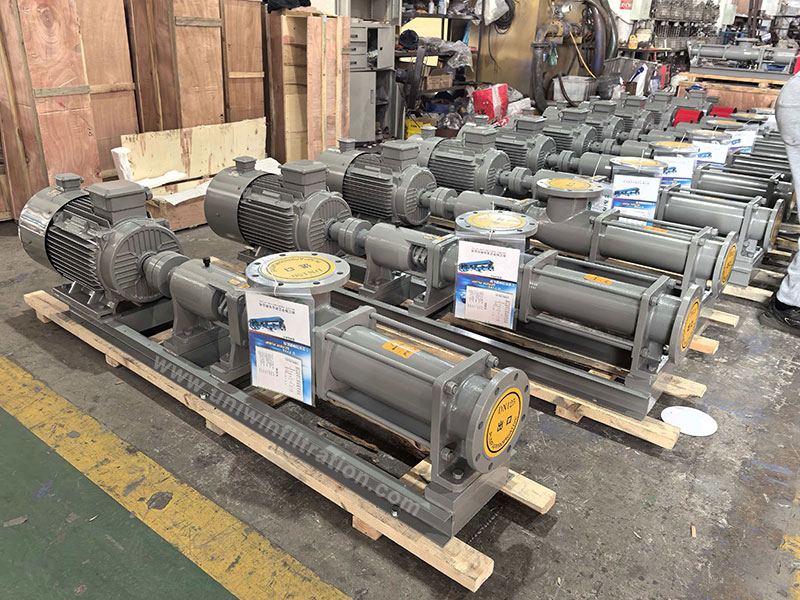

Screw pump
Suitable for: High viscosity, high solids content, and applications requiring stable and continuous feed
Advantages: Stable flow rate, low pressure pulsation, minimal damage to filter cloth
Disadvantages: Not resistant to large particles, prone to wear
Recommended applications: Sludge, food, and pharmaceutical industries

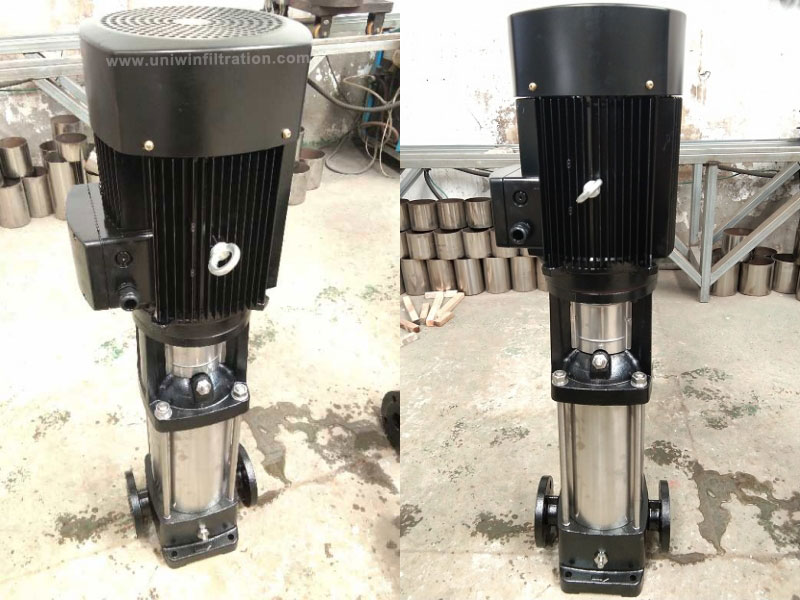

Centrifugal pump
Suitable scenarios: Low solids content, fine particles, high flow rate
Advantages: Simple structure, high flow rate, low price
Disadvantages: Limited head, not wear-resistant, not suitable for high solids content
Recommended operating conditions: Light slurry, pre-filtration of clear liquids

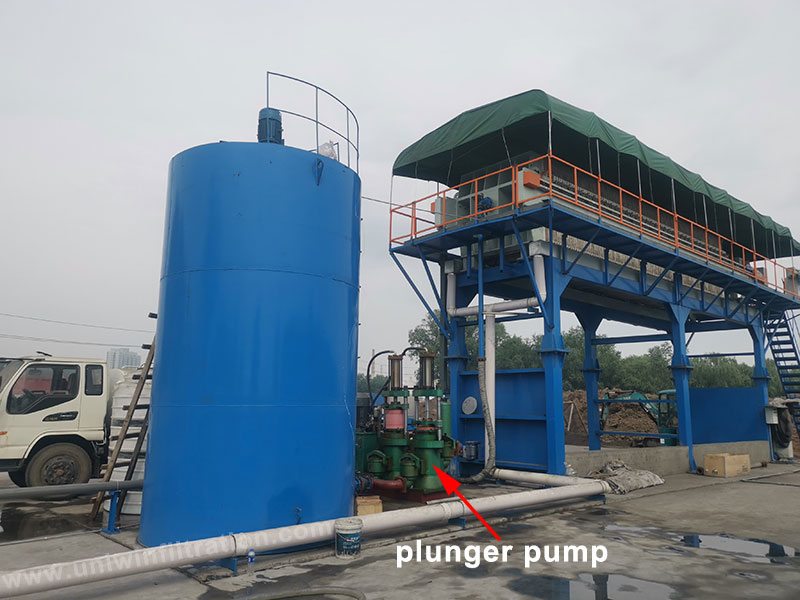

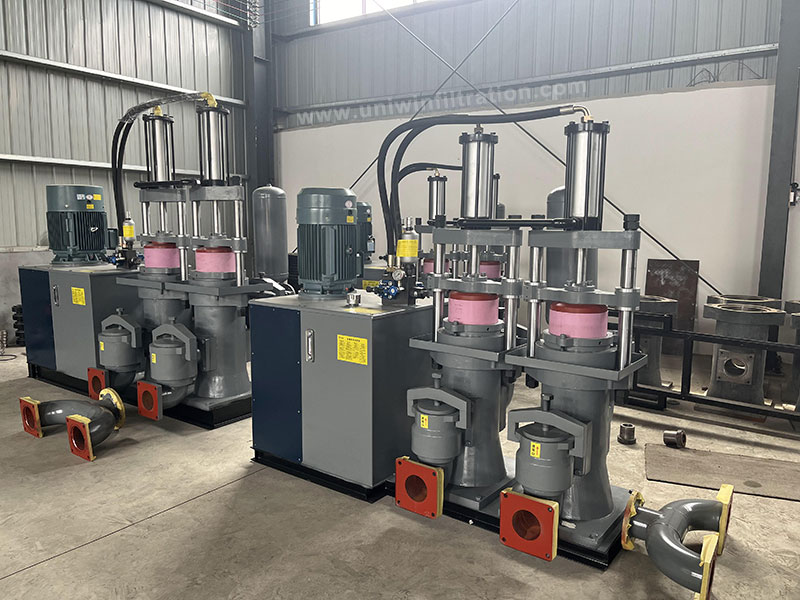

Plunger pump
Application scenarios: High-pressure feeding, conditions containing particles
Advantages: High pressure, wear-resistant, energy-saving
Recommended applications: High-concentration mud, slurry, ceramic slurry
Ultimate Key Factors
Material compatibility: Components in contact with materials, such as the pump body, impeller, and plunger, must be selected based on the corrosiveness and abrasiveness of the material (e.g., ceramic plungers, stainless steel pump bodies).
Installation and operating condition compatibility: Whether the self-priming height meets the requirements of on-site installation; for continuous operation, a pump model with a fatigue-resistant design should be selected.
Selection Considerations
Filter press integration control: the feed pump needs to be equipped with a frequency converter to achieve automatic pressure-flow regulation (high flow rate, low pressure initial feeding, then pressure increase for filtration).
Standby pump configuration: for critical processes, it is recommended to have one pump in operation and one on standby.
Pipeline design: the feed pipe diameter should not be too small to avoid blockage.
Conclusion
In summary, selecting a filter press feed pump requires consideration of several key factors. If you are considering pump selection, please feel free to contact us, and we will provide you with the most suitable selection solution.
