What Equipment is Included in A Complete Filter Press System?
Many customers, when purchasing filter presses, primarily focus on the model, filtration area, and price of the main unit. However, in actual projects, a complete filter press system includes more than just the filter press itself; it also encompasses multiple supporting components such as feeding, pressing, draining, unloading, cleaning, chemical dosing, and control systems.
This article will introduce the equipment typically included in a complete filter press system, helping you better understand the project configuration before making a purchase.
Filter Press Main Unit

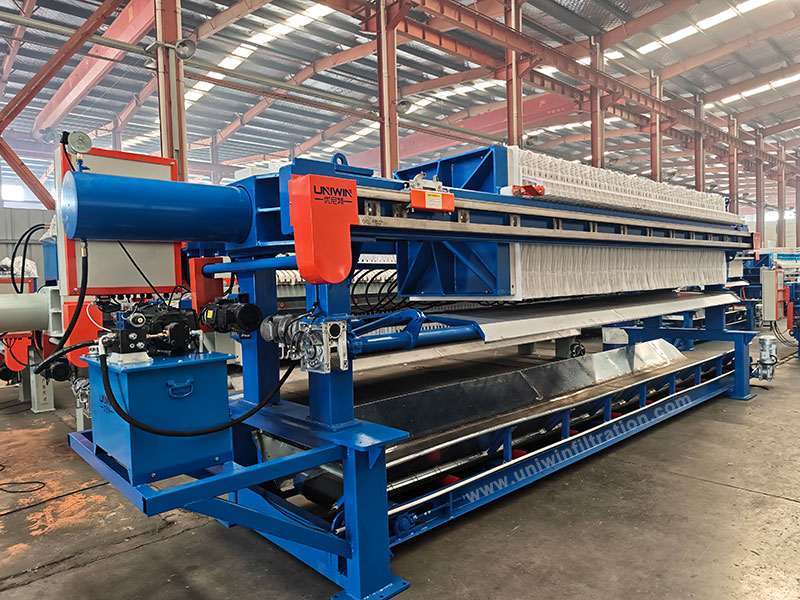

The filter press main unit is the core equipment of the entire system, its main function being to complete solid-liquid separation. After the slurry enters the filter chamber, it is filtered through the filter cloth under pressure. Solid particles are trapped inside the filter chamber, while the liquid is discharged through the filter cloth.
Common types of filter presses include:
- Chamber Filter Press
- Diaphragm Filter Press
- Plate and Frame Filter Press
- Cast Iron Filter Press
- Stainless Steel Filter Press
Feed Pump
The feed pump is used to transport the slurry into the filter chamber of the filter press and is a vital component of the filter press system.
The selection of the feed pump needs to be determined based on the material concentration, viscosity, particle size, throughput, feed pressure, and on-site operating conditions.
Hydraulic Pressing System

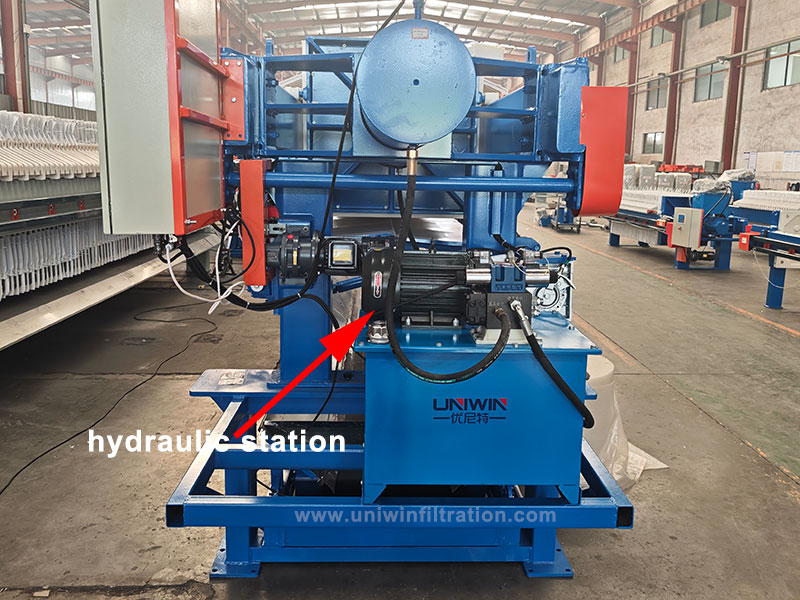

The function of the hydraulic system is to press the filter plates together, ensuring a tight seal between the plates during filtration and preventing problems such as material spraying and leakage.
Automatic filter presses are generally equipped with an automatic pressure-maintaining function. When pressure changes during filtration, the system can automatically replenish pressure to maintain stable operation. The stability of the hydraulic system directly affects the sealing effect and operational safety of the filter press.
Filter Plates and Filter Cloths
Filter plates and filter cloths are core components that directly affect filtration efficiency.

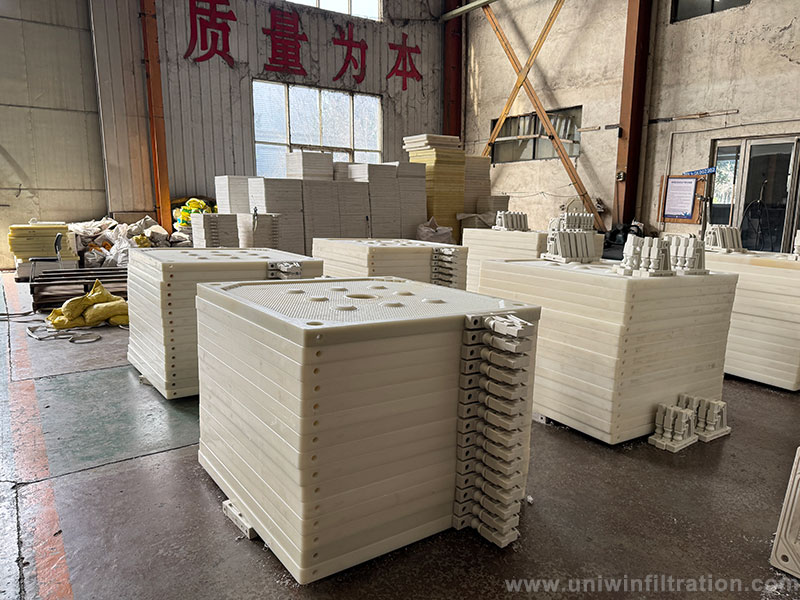

Filter plates form filter chambers. After the slurry enters the chambers, solid particles gradually form a filter cake. Filter cloths act as the filter medium, allowing liquid to pass through while trapping solid particles.
The selection of filter cloth is crucial. Different materials require filter cloths with different permeability, thickness, and weave patterns.
For different materials used in mining, chemical, sludge, food, and pharmaceutical industries, it is recommended to select a suitable filter cloth based on the actual properties of the material. If necessary, small-scale testing can be conducted first.
Filtrate Collection Tank and Drip Tray
During filter press operation, filtrate will drain from below the filter plates or through the outlet pipe. If a high level of cleanliness is required, a filtrate collection tank or drip tray is typically installed.

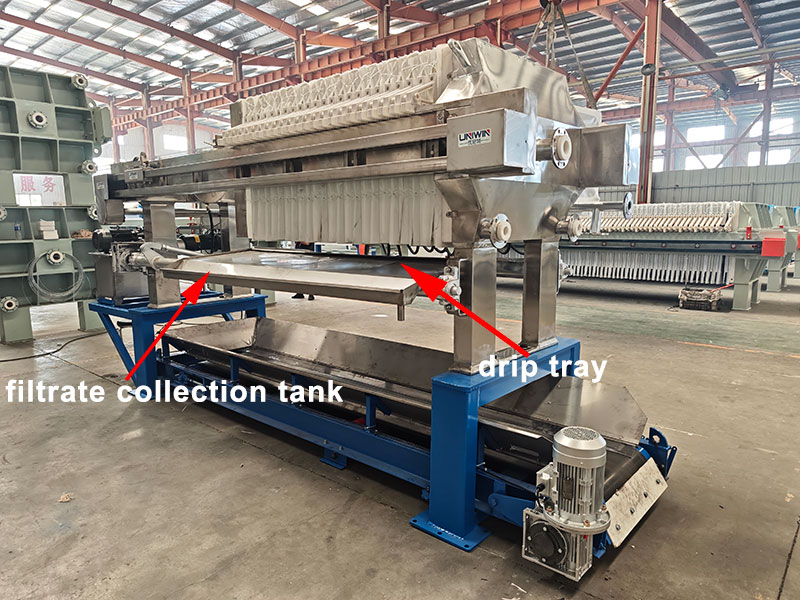

The drip tray is primarily used to collect dripping filtrate during filtration, preventing it from falling directly onto the filter cake or the ground. After filtration, the drip tray opens, allowing the filter cake to fall directly into the conveyor or receiving area below.
Unloading and Filter Cake Conveying System
After filtration, the filter cake needs to be discharged from the filter press. Small filter presses can be manually operated or used with a trolley, but for projects with larger throughput, an automatic unloading and conveying system is usually installed.

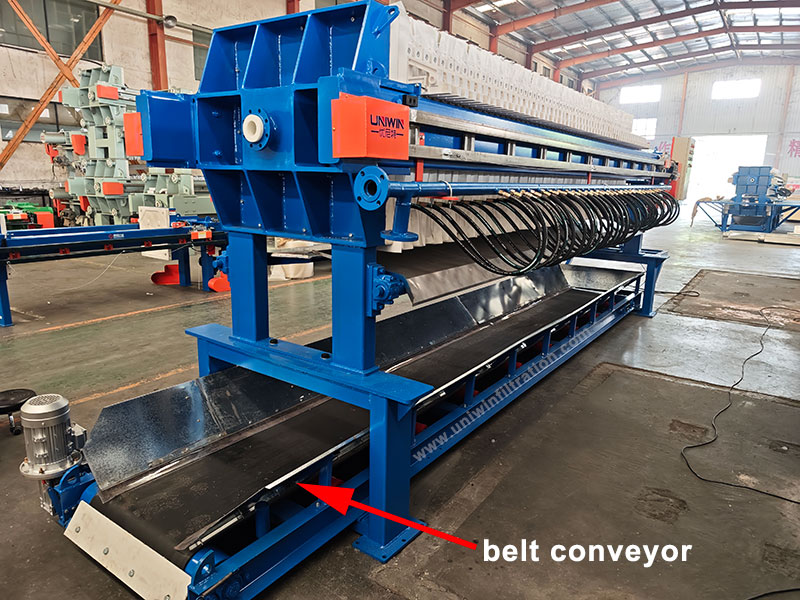

Belt conveyors can transport the filter cake to a designated location, reducing manual handling and improving on-site work efficiency.
If the filter press is installed on a platform, a conveyor belt, transport vehicle, or sludge storage hopper can be installed underneath for convenient centralized processing of the filter cake.
Filter Cloth Cleaning System
Filter cloths are prone to clogging by fine particles during long-term use, leading to a decrease in filtration speed. Therefore, some automatic filter presses are equipped with a filter cloth cleaning system.

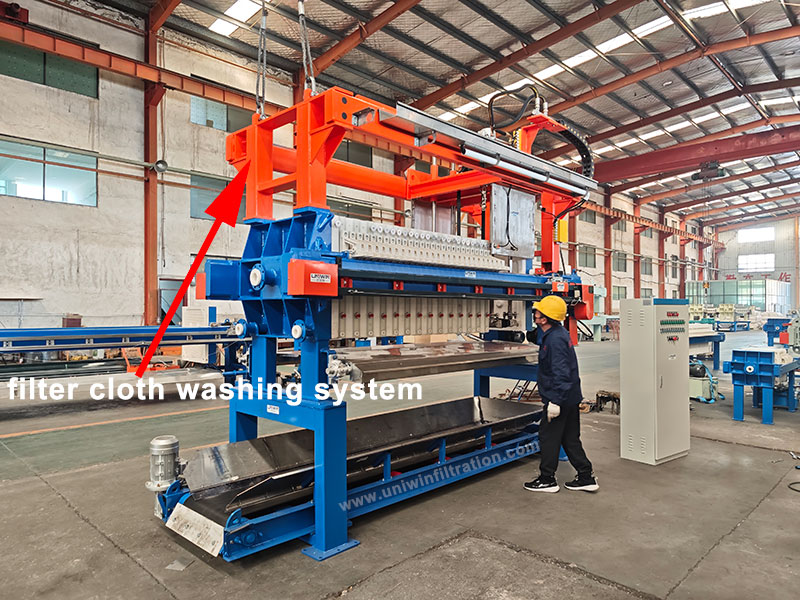

An automatic filter cloth cleaning system can reduce manual cleaning, extend the lifespan of the filter cloth, and maintain long-term stable operation of the equipment.
If the material is prone to clogging or if the customer requires continuous and stable operation of the equipment, a filter cloth cleaning system is a very practical feature.
Chemical Dosing Systems
In sludge treatment, wastewater treatment, mining, and chemical projects, chemical dosing systems are frequently used in conjunction with filter presses.
The purpose of chemical dosing is to improve the flocculation of materials, making it easier for solid particles to form a filter cake, increasing the filtration rate, and improving the clarity of the filtrate.
PLC Electrical Control System

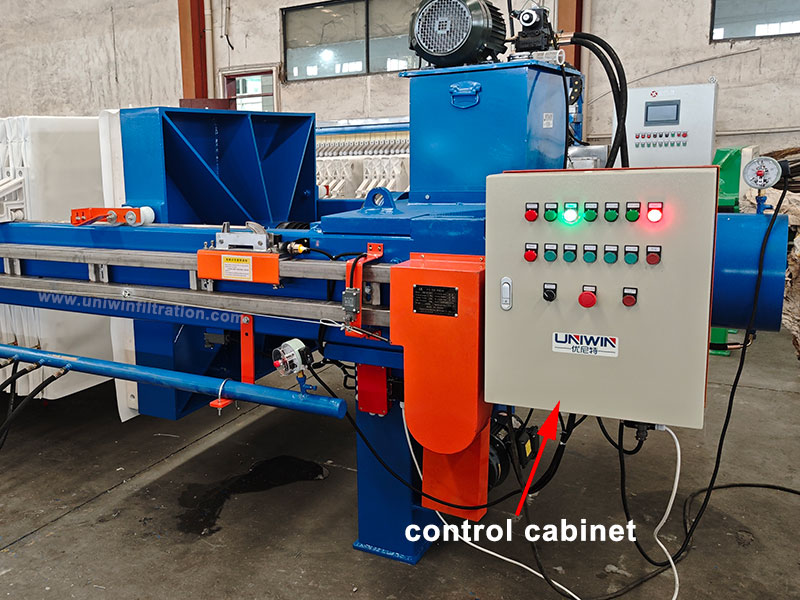

The electrical control system is the control center of the entire filter press system.
For large projects or projects with high automation requirements, the PLC control system can reduce manual operation and improve operational stability and production efficiency.
Conclusion
A complete filter press system typically includes more than just the filter press itself; it also includes a feed pump, filter plates and cloths, a liquid receiving system, a drip tray, conveying equipment, a dosing system, and a filter cloth washing system.
If you are selecting a filter press or a complete solid-liquid separation system, please contact us. You can provide the material type, throughput, solid content, target moisture content, and site requirements. Our engineering team can recommend suitable filter press models, feed pumps, filter cloths, automation configurations, and complete system solutions based on your project needs.
